Kenwood’s compact and rugged TK-2302/TK-3302 transceivers represent ergonomic and quality excellence. Based upon a proven design with enhanced features,it has the power and performance to satisfy the toughest job requirements. You will immediately appreciate how easy it is to use and enjoy.
COMPACT DESIGN

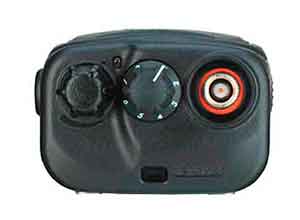

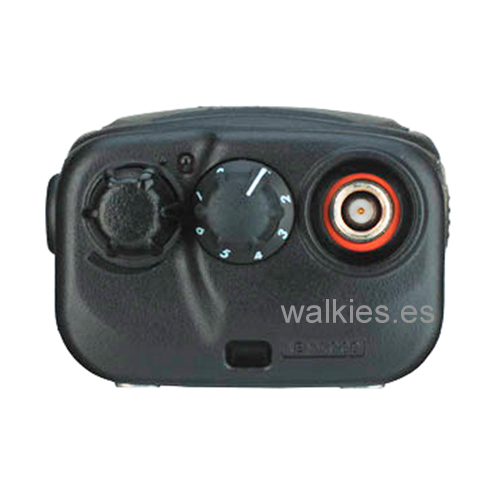

The TK-2302/3302’s rounded ergonomic contours naturally fit the hand for a superbly comfortable hold,while the non-slip elastomer channel knob with improved torque characteristics ensures positive select operation..
TOUGH & WATER RESISTANT

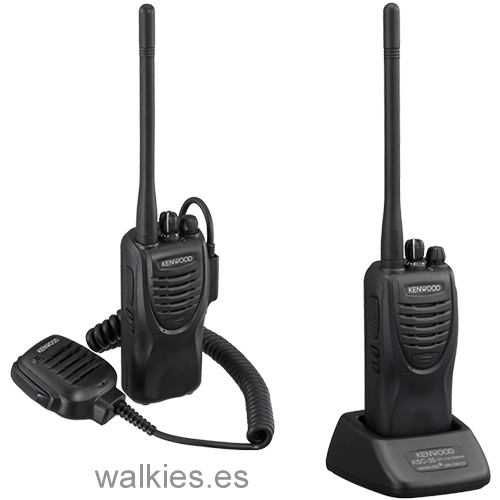

Built tough to take rough treatment in stride, the TK-2302/TK-3302 has passed the demanding IP54/55 dust and water intrusion tests, both with or without the KMC-45 optional speaker microphone. They meet or exceed 11 stringent MIL-STD 810 C/D/E/F environmental standards including driven rain. So,whatever the weather, the radios are ready for action.

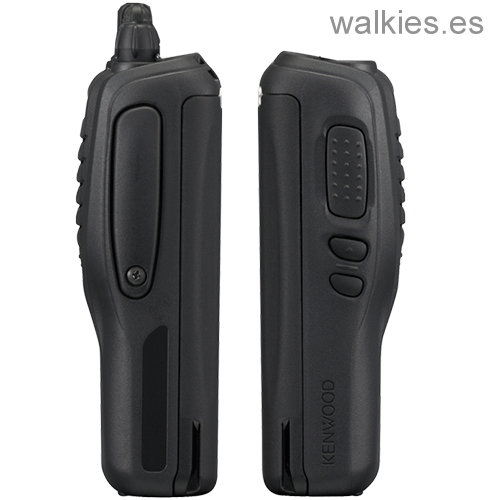

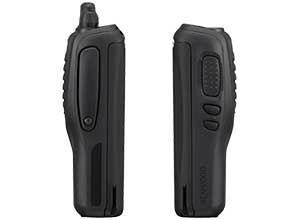

FUNCTION KEYS
The two side PF1 and PF2 keys make functions easily available on the TK-2302/TK-3302, with PF1 key for activating the Lock function and PF2 key for Scan w/temp delete function permitting a custom usage for specific users.
LOCK Lock
all user controls (except PTT and volume) to prevent accidental channel changes.
SCAN
Scanning is a simple way to monitor multiple channels and the TK-2302/TK-3302 (16-channel capacity) offers scan modes.
VOICE ANNUNCIATION
When you select different channels,these radios can be set to provide voice annunciation channel numbers.
General Specifications | |
---|---|
Frequency Range - E Type | TK-2302 VHF: 136-174 MHz. TK-3302 UHF: 440-470 MHz |
Number of Channels | 16 |
Channel Frequency Spread | 30 MHz. |
Channel Spacing | Wide: 25 kHz. Mid: 20 kHz. Narrow: 12.5 kHz. |
Antenna Impedance - 50 Ohm | Yes |
Battery Life | With KNB-45L: - Battery Save ON: 18 hours - Battery Save OFF: 12 hours |
Battery Voltage | 7.5 V DC ± 20% |
Frequency Stability | ± 2.5 ppm (-30 °C to + 60 °C) |
Operating Temperature Range | -30 °C to + 60 °C |
Dimensions | With KNB-45L : 54 x 122 x 33.8 mm - Projections not included |
Weight (net) | Radio only: 160g With KNB-45L: 280g |
Receiver Specifications | |
---|---|
Adjacent Channel Selectivity | 70 dB at 25 kHz 70 dB at 20 kHz 62 dB at 12.5 kHz |
Audio Output | 500 mW with less than 10% distortion |
Intermodulation | 65 dB |
Sensitivity - EIA 12 dB SINAD | 0.28 µV at 25 kHz 0.28 µV at 20 kHz 0.35 µV at 12.5 kHz |
Sensitivity - EN 20 dB SINAD | -3 dB µV at 25 kHz -3 dB µV at 20 kHz 2 dB µV at 12.5 kHz |
Spurious Response Rejection | 70 dB |
Transmitter Specifications | |
RF Power Output (High/Low) | 4 W / 1 W |
FM Noise (EIA) | 45 dB at 25 kHz 43 dB at 20 kHz 40 dB at 12.5 kHz |
Modulation Distortion | Less than 5% |
Modulation Limiting | ± 5.0 kHz at 25 kHz ± 4.0 kHz at 20 kHz ± 2.5 kHz at 12.5 kHz |
Spurious Emission (EN) | -36 dBm ≤ 1 GHz -30 dBm > 1 GHz |
