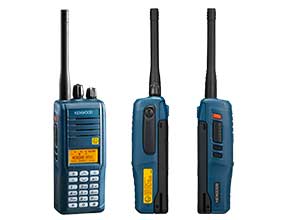

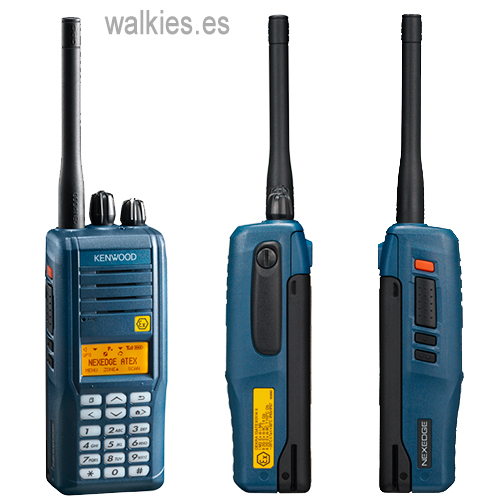

NEXEDGE® Digital ATEX / IECEx Safety Two Way Radios
Advanced safety and digital performance Kenwood NEXEDGE® digital ATEX / IECEx hand portable radios bring the increased range, performance and security of digital technology to customers requiring ATEX/IECEx certified equipment - secure in the knowledge that they are built on the proven performance and reliability of NEXEDGE® with over 700,000 devices in use.
Available in VHF and UHF versions and incorporating a host of lone worker and advanced safety features NEXEDGE® ATEX / IECEx radios are designed for use in hostile environments.
ATEX Directive 94/9/EC:- IECEx Scheme: - II 2G Ex ib IIC T4 Gb - Gas Protection - Ex ib IIC T4 Gb - Gas Protection - II 2D Ex ib IIIc T110°C Db - Dust Protection - Ex ib IIIC T110°C Db - Dust Protection - I M2 Ex ib I Mb - Mining Protection - Ex ib I Mb - Mining Protection.
Federation of Communications Services Gerald David OBE Innovation in Business Radio Award 2010.
Typical industy applications include oil and gas, automotive, aviation and marine refueling and transport, chemical processing and manufacture, furniture manufacturing and other industrial manufacturing, processing and maintenance operations where hazardous, combustible gases and airborne particles are present and where worker safety and reliable communications are paramount.
Easy integration NEXEDGE® digital ATEX / IECEx hand portable radios feature Mixed Mode, which enables them to automatically recognise and communicate with any existing analogue radios in your fleet; allowing you plan a phased migration to the benefits of digital.
Rugged and durable NX-230EX/330EX radios are fully compliant with U.S. Department of Defence environmental standards for US MIL-STD 810 C/D/E/F/G for: Low Pressure, High Temperature, Low Temperature, Temperature Shock, Solar Radiation, Rain, Humidity, Salt Fog, Dust, Vibration, Shock and Immersion.
| General Specifications | |
|---|---|
| Frequency Range | VHF: 136 - 174 MHz. UHF: 400 - 470 MHz. |
| Number of Channels | 512 |
| Number of Zones | 128 |
| Talk Groups | Yes |
| Channel Frequency Spread | 38 MHz |
| Channel Spacing - Analogue - Wide/Mid/Narrow | 25 kHz/20 kHz/12.5 kHz |
| Channel Spacing - Digital - Wide/Narrow | 12.5 kHz/6.25 kHz |
| Antenna Impedance | 50 Ohm. |
| Battery Life | 5-5-90 approx 8.5 hours GPS ON approx 14 hours GPS OFF |
| Frequency Stability | ± 2 ppm (-20 °C to + 50 °C) |
| Operating Temperature Range | -20 °C to + 50 °C |
| Operating Voltage | 7.5 V DC (± 6.2/8.4 V) |
| Dimensions | With KNB-70LEX: 138 x 58 x 39.8 mm - Projections not included - |
| Weight (net) | With KNB-70LEX: 493 g |
| Especifications ATEX | |
| ATEX Certification | EU 94/9/EC. Certificado a II2G Ex ib IIC T4 Gb - Protección Gas, II2D Ex ib IIIC T110 grados C Db - Protección Polvo, IM2 Ex ib I Mb - Minería |
| IECEx Certification | Protección Gas - Ex ib IIC T4 Gb. Protección Polvo - Ex ib IIIC T110 grados C Db Minería - Ex ib I Mb |
| Resistance | IP67 |
| Receiver Specifications | |
|---|---|
| Adjacent Channel Selectivity (Analogue) | 68 dB at 12.5 kHz |
| Audio Output | 500 mW with less than 3% distortion. 8 Ohms Impedance |
| Intermodulation (Analogue) | 65 dB |
| Sensitivity (Analogue) - EIA 12 dB SINAD | 0.28 µV at 25 kHz 0.28 µV at 20 kHz 0.32 µV at 12.5 kHz |
| Sensitivity (Analogue) - EN 20 dB SINAD | -3 dB µV at 25 kHz -3 dB µV at 20 kHz -1 dB µV at 12.5 kHz |
| Sensitivity (Digital) | 3% BER: 0.32 µV at 12.5 kHz 0.25 µV at 6.25 kHz 1% BER: -1 dB µV at 12.5 kHz -4 dB µV at 6.25 kHz |
| Spurious Reponse Rejection (Analogue) | 70 dB |
| Transmitter Specifications | |
| RF Power Output | 1.2 W |
| FM Noise (EIA) | Analogue: 48 dB at 25 kHz 48 dB at 20 kHz 43 dB at 12.5 kHz |
| Modulation Distortion | Less than 3% |
| Modulation Limiting | Analogue: ± 5.0 kHz at 25 kHz ± 4.0 kHz at 20 kHz ± 2.5 kHz at 12.5 kHz |
| Spurious Emission (EN) | -36 dBm ≤ 1 GHz -30 dBm > 1 GHz |
