WALKIE TALKIE ENTEL HT983
Portable Radio Submersible ATEX

ENTEL HT983

Features

  • Frequency Range: 400 - 470MHz.
  • IP-68 y MIL STD 810C/D/E/F.
  • 2 metres for 4 hours submersible.
  • Channels: 255 Channels.
  • Channel Spacing: 12.5 kHz / 25 kHz.
  • Communication Method: Simplex / semi duplex.
  • Antenna Impedance: 50 ohm.
  • Antenna: Whip / stubby.
  • Battery Type: 1800 mAh Li-Ion battery pack.
  • Power Supply Voltage: 7.4V DC.
  • Current Drain (nominal): TBA.
  • Duty Cycle (5/5/90): TBA.
  • Internal condenser microphone.
  • Operating Temperature: -20° to +55°.
  • Size (mm) 59.5(W) x 130(H) x 37(D)
  • Weight: 277g with battery and aerial .

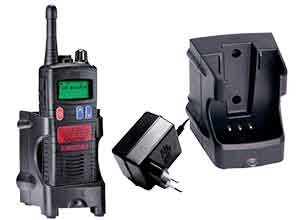

Package includes:
  • 7.4v, 2000mAh Li-Ion battery.
  • Trickle charger
  • Spring loaded belt clip
  • High efficiency antenna.
  • User guide CD.
ENTEL HT983
ENTEL HT983
ENTEL HT983
ENTEL HT983

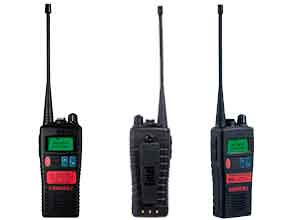

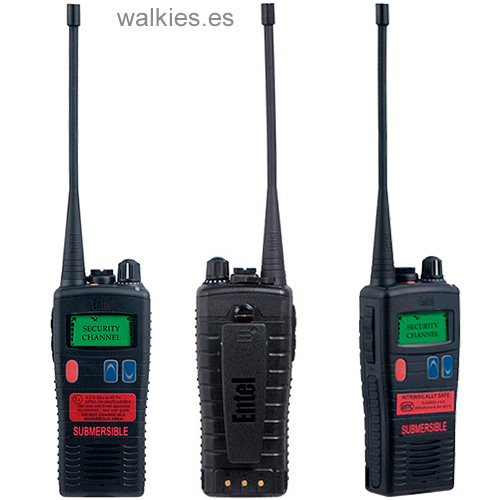

ENTEL HT983 Walkie-Talkie ATEX UHF

Entry & Sophisticated Models
The Entel HT900 Series 2.0 ‘Entry’ models provide instantaneous Push-To-Talk communications with ‘Advanced’ models adding extra features including Individual & Group calling, Lone-Worker protection, Text messaging etc.

Intrinsically Safe
All HT900 Series 2 portables are ATEX (II 2 G Ex ib IIC T4) Intrinsically Safe certified.

Environmental protection to IP68 (2 Meters for 4 hours)
The practical HT900 Series 2.0 portables enjoy an IP68 (2 Meters for 4 hours) rated construction, which means that they are dust protected and fully Submersible.

MILSTD 810C/D/E/F
Meeting MIL-STD 810C/D/E/F and providing commercial grade construction for tough, enduring performance. Entel's HT900 Series 2.0 portables conform to stringent standards, enabling them to withstand the everyday rigours of shock, vibration and the corrosive effects of dust and moisture, ensuring many years of trouble free use.

2000mAh Li-Ion battery
HT900 Series 2.0 portables are supplied with the latest intelligent Lithium-Ion battery technology as standard. One key advantage of Lithium-Ion battery technology is the way it eliminates ‘memory effect’ meaning there is no need to fully discharge your battery before recharging. Therefore you are assured a full charge each and every time you take your Entel battery from its charger.

Flash upgradeable to add future features
Entel adds and improves features on its HT900 radios by way of software updates. Using Flash Upgrade technology your Entel HT900 radios can be upgraded by your Dealer at any time.

Robust accessory socket
The socket has been specifically designed so that when an accessory is secured to the portable, the connection can withstand any amount of punishment; from dropping to careless misuse. Furthermore, the securing bolt incorporates a shearing point to protect the connector.

Channels
All non-display HT900 portables provide 16 programmable channels. Display portables provide 255 programmable channels.

ACCESSORIES ENTEL

>

MICROPHONES AND HEADPHONES

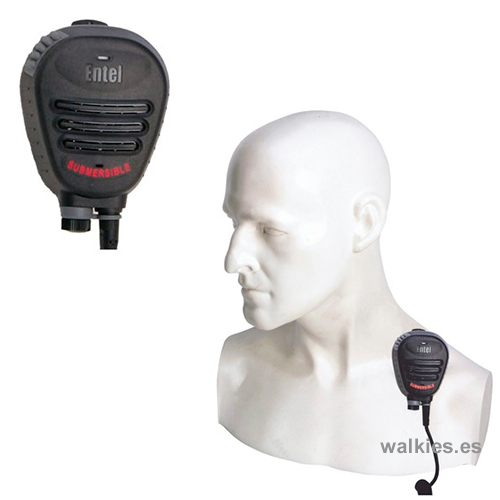

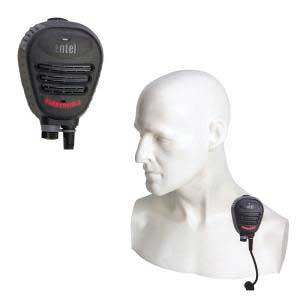

CMP950

CMP950

A submersible, very rugged, heavy duty lapel speaker microphone for the HT ATEX series hand portable radio.

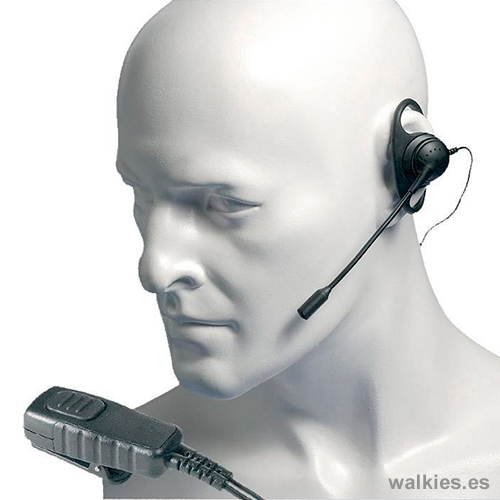

EA19/950

EA19/950

'D' shaped earpiece with boom microphone.

auricular con micrófono y PTT para walkie talkie Entel Series HT ATEX

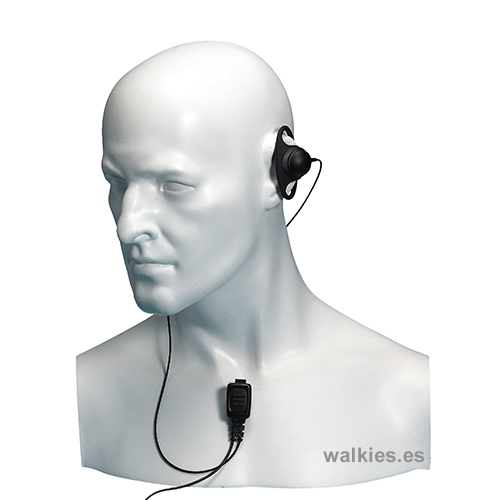

EA12/950

'D' shaped earpiece and tie clip microphone.

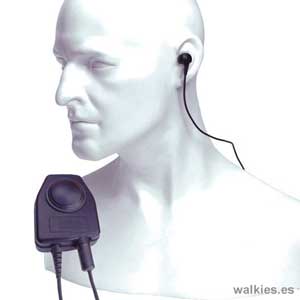

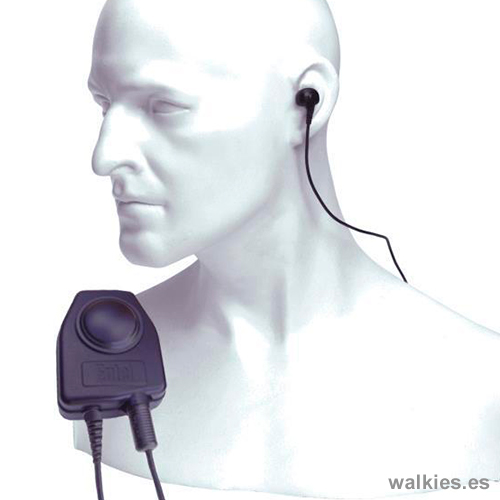

EPT40/950

EPT40/950

Bone conductive earpiece microphone for the HT ATEX series hand portable radio.

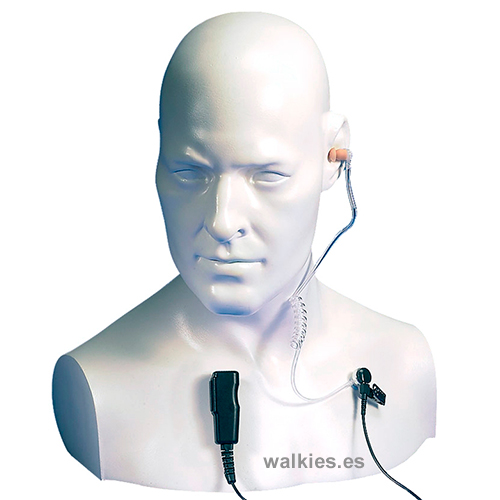

EA15/950

EA15/950

Acoustic tube earpiece and tie clip microphone.

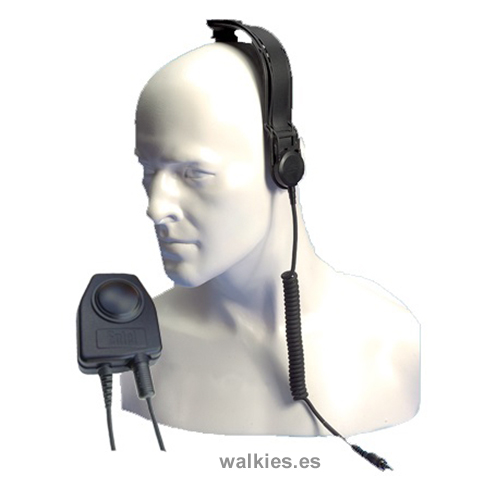

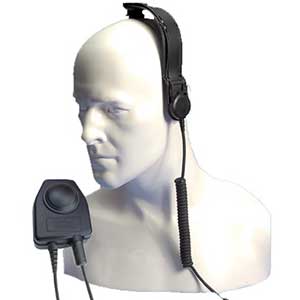

CXR5/950

CXR5/950

Bone conductive skull microphone with in-line PTT.

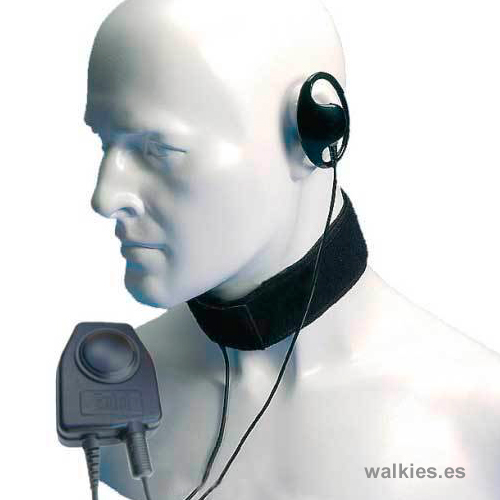

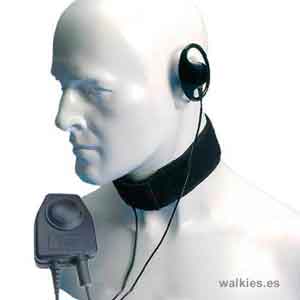

CXR16/950

CXR16/950

‘D’ Shaped earpiece, throat microphone with large in-line PTT.

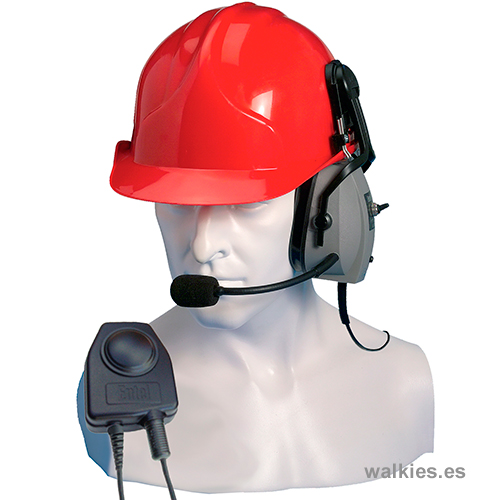

CHP950HS

CHP950HS

Single earpiece ear defender (hard hat use only) with VOX.

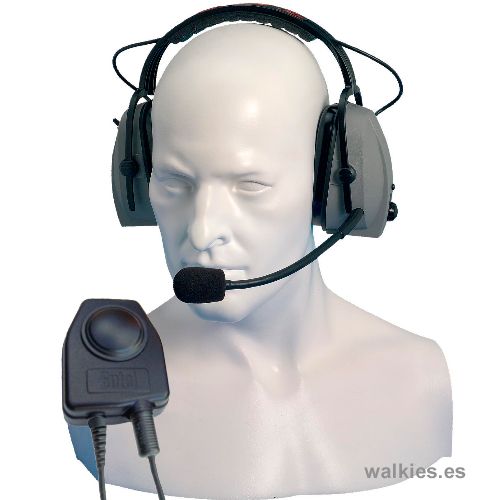

CHP950D

CHP950D

Double ear-cup ear defender with comfort headband and VOX.

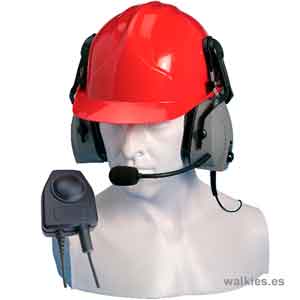

CHP950HD

CHP950HD

Double ear-cup ear defender (hard hat use only) with VOX.

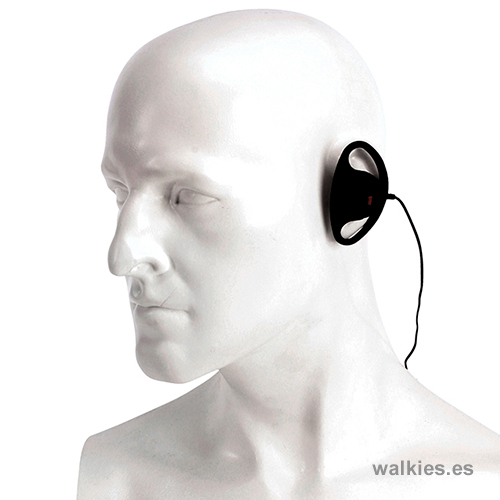

EHP950

EHP950

‘D’ shaped covert style earpiece.

>

BATERÍAS Y CARGADORES

>

UHF / VHF ANTENNAS

CAT10S

CAT10S

VHF66-88MHz stubby antenna UNCUT.

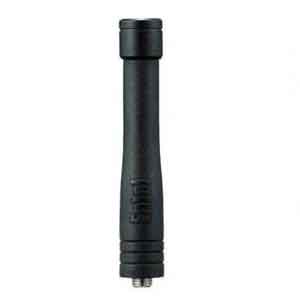

CAT10S-85

CAT10S-85

VHF66-88MHz stubby antenna PRE-CUT for 85MHz.

CAT10S-78

CAT10S-78

VHF66-88MHz stubby antenna PRE-CUT for 78MHz.

CAT20

CAT20

VHF136-174MHz standard antenna UNCUT.

CAT20S/165

CAT20S/165

VHF136-174MHz stubby antenna PRE-TUNED at 165MHz.

CAT20S/155

CAT20S/155

VHF136-174MHz stubby antenna PRE-TUNED at 155MHz.

CAT80

CAT80

UHF400-470MHz ¼ wave whip antenna UNCUT.

>

OTHER ACCESSORIES

CNB950E

CNB950E

Lithium-Ion battery pack for the HT ATEX series hand portable radio.

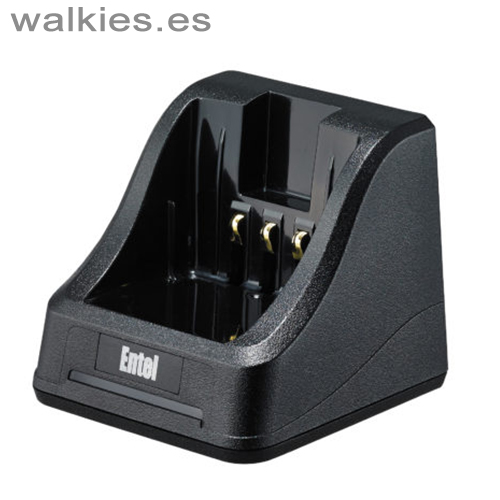

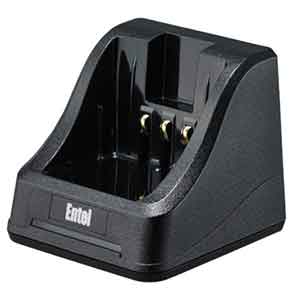

CSAHT

CSAHT

Single-unit rapid charger for the HT series hand portable.

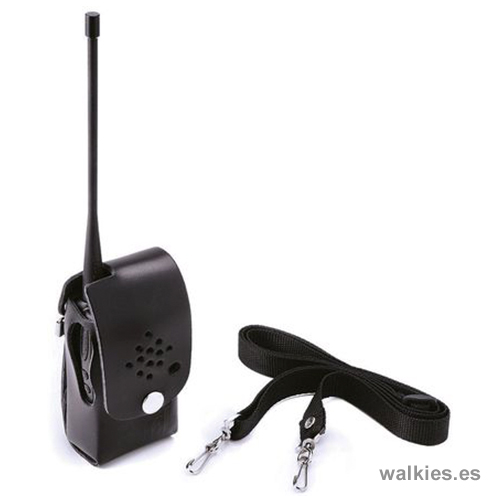

CLC952

CLC952

Heavy duty leather case and strap with belt loop for the HT ATEX series.

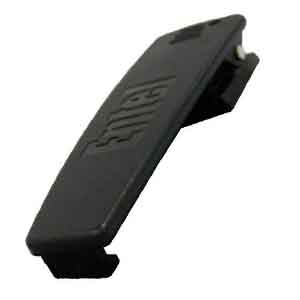

CBH950

CBH950

ATEX approved spare spring loaded belt clip.

DATA SHEET

General Specifications
Frequency Range 400 - 470MHz
Channels Non LCD 16 Channels, LCD 255 channels
Channel Spacing 12.5 kHz / 25 kHz
Communication Method Simplex / semi duplex
Antenna Impedance 50 ohm
Antenna Whip / stubby
Battery Type 2000 mAh Li-Ion battery pack
Power Supply Voltage 7.4V DC
Current Drain (nominal) 40mA
Duty Cycle (5/5/90) 14.5 hours
Microphone Internal condenser microphone
Operating Temperature -20° to +55°C
Size (mm) 59.5(W) x 130(H) x 37(D)
Weight 277g with battery and aerial
Transmitter
Power Output 1W
Modulation 8K0G3E/16K0G3E
Oscillator Method PLL
Frequency Stability 2.5PPM
Maximum Deviation ±2.5 kHz(Narrow)/ ±5 kHz(Wide)
Audio Distortion < 5% (1 kHz 60%)
Spurious Emission -68 [dBc]
Hum & Noise -40 [dB]
Receiver
Receiver Type Double Super Heterodyne type
Sensitivity -0.25uV (12dB SINAD)
Frequency Stability 2.5PPM
Spurious Rejection +70 dB
Adjacent Channel Selectivity -60 dB (Narrow) , -70 dB (Wide)
Distortion < 5% (1 kHz 60%)
Hum & Noise -40 dB
Audio Output 1W
