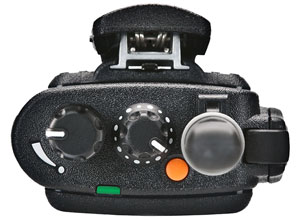

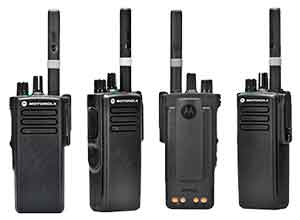

MOTOROLA DP4400
Professional Walkie Talkie - DMR

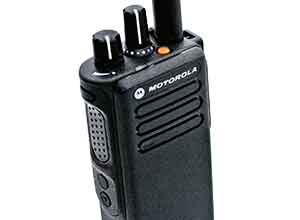

MOTOROLA DP4401

Features

  • 32 Channels.
  • VHF 136-174 Mhz.
  • UHF 403-470 Mhz.
  • DP4401: GPS and Bluetooth®.
  • Emergency button.
  • Email gateways.
  • Man-down applications.
  • Network monitoring.
  • IP57 rated.
  • 5-Tone Signaling.
  • Resistencia: IP57.
  • Capacity Plus (Single Site Trunking).
  • VOX capacity.
Package includes:
  • Radio.
  • Antenna.
  • Single-Unit Charger.
  • Li-Ion Battery.
Motorola DP4401
Motorola DP4400
MOTOROLA DP4400
Motorola DP4401

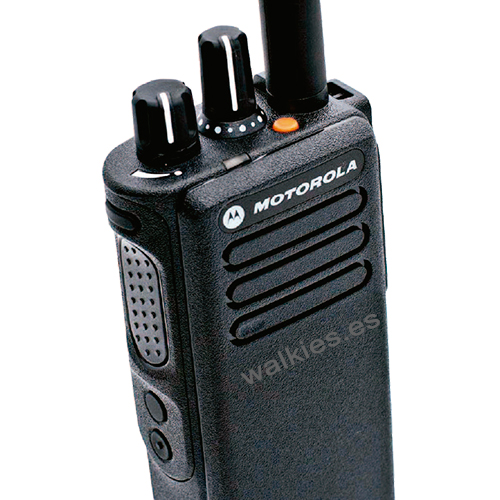

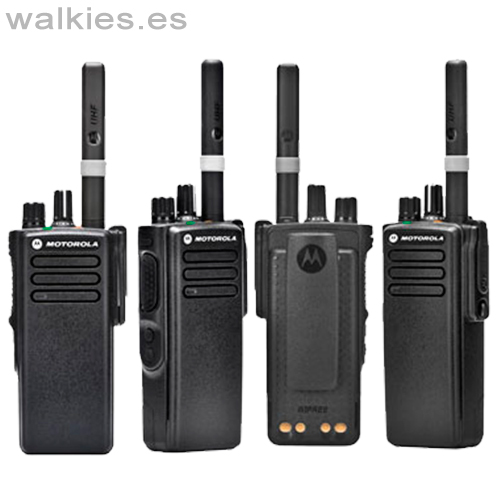

MOTOROLA DP4400 / DP4401 Digital Walkie Talkie

The DP4400 / DP4401 portable radio delivers unrivaled voice and data communications with optional integrated GPS and Bluetooth (DP4401). This feature-rich radio delivers best-in-class audio that includes Intelligent Audio and customizable voice announcements for status notifications.

The DP4400 / DP4401 is easy to use and features 32 channel capacity, three programmable buttons, dedicated emergency button, IP57 specifications for submersibility and FM or TIA intrinsically safe options.

Best-in-Class Audio
Loud front-facing speaker and Intelligent Audio feature that automatically adjusts the radio volume according the environment’s noise level.

Text Messaging
Send preprogrammed messages to team members when radio communications need to be delivered without interrupting workers or guests.

Emergency Button
Orange button on the top of the radio can be programmed to send an alert to a supervisor or dispatcher during an emergency situation.

Rugged, Reliable Design
Tightly sealed against wind and dust, and submersible in up to one meter of water for 30 minutes (IP57 rated).

ACCESSORIES MOTOROLA

>

MICROPHONES AND HEADPHONES

PMLN5003A

PMLN6531A

Lightweight headset with micro PTT and vox.

PMLN5727A

PMLN5727A

Swivel Earpiece with in-line microphone and push-to-talk.

PMLN4294D

PMLN4294D

Black Earbud with Push to Talk.

PMLN5001A

PMLN5001A

D Loop Earpiece with Microphone PTT - Standard Two-Prong.

PMLN5975A

PMLN5975A

Auricular giratorio Mag One con micrófono y PTT.

PMLN5101

PMLN5101

IMPRES Temple Transducer with In Line PTT.

PMLN5973

PMLN5973

Mag One Ear Receiver with inline Mic & PTT.

WADN4190

WADN4190

3.5mm Ear Receiver with Coiled Cord.

PMLN4620

PMLN4620

3.5mm Listen Only Earpiece with Coilder Cord and D-Ring Ear Hanger.

PMLN5979

PMLN5979

Headset Mag One breeze headset with boom mic & PTT.

PMLN5102

PMLN5102

Ultra Lightweight Intrinsically Safe Headset.

NTN2572

NTN2572

Mission Critical - Operations Critical Replacement Wireless Earpiece.

GMTN6356

GMTN6356

Auricular inalámbrico Bluetooth. Requiere el adaptador (PMLN5712)

NNTN8191

NNTN8191

Wireless PTT compact and lightweight, yet features a large, easy-to-access PTT button. Bluetooth.

PMLN5712

PMLN5712

Bluetooth Wireless Adapte.

PMMN4024

PMMN4024

Remote speaker microphone with 3.5mm. jack.

PMMN4040A

PMMN4040A

Small RSM windporting with push to talk switch and swivel clip, Submersible IP57.

PMMN4046A

PMMN4046A

Large RSM (non-Impres) with push to talk switch, volume control, emergency button, programmable button and swivel clip, Submersible IP57.

>

BATTERIES AND CHARGERS

NNTN8129

NNTN8129

Battery Motorola IMPRES Li-ion 2.350 mAh. submersible battery, IP57.

PMNN4409

PMNN4409

Battery Motorola IMPRES Li-Ion 2.250 mAh high capacity submersible battery IP57.

PMNN4448

PMNN4448

IMPRES Li-Ion 2.800mAh CE battery.

WPLN4255

WPLN4255

IMPRES Single Unit Charger.

RLN6433

RLN6433

Travel Charger with VPA adaptor.

WPLN4212

WPLN4212

Multi unit charger insert.

WPLN4219

WPLN4219

IMPRES Multi Unit Charger with display.

>

ANTENAS UHF / VHF

PMAE4079

PMAE4079

UHF/GPS Combination Stubby Antenna. 403 - 527 MHz.

PMAD4117A

PMAD4117A

VHF/GPS combination helical antenna for the 136-155 MHz.

PMAE4002A

PMAE4002A

Antenna, 9cm. UHF 403-433 Mhz.

PMAD4119A

PMAD4119A

VHF/GPS combination stubby antenna for the 136-148 MHz. range.

PMAE4070

PMAE4070

UHF/GPS combination stubby antenna for the 440-490 MHz. range.

MAE4071

PMAE4071

UHF/GPS combination stubby antenna for the 470-512 MHz. range.

PMAE4120

PMAE4120

VHF/GPS combination stubby antenna for the 146-160 MHz.

>

OTHER ACCESSORIES

PMLN7008

PMLN7008

Belt Clip for DP2000, DP2400 & DP2600.

RLN4570

RLN4570

Break-A-Way Chest Pack.

HLN9701

HLN9701

Nylon Case with Belt Loop with NiCd, NiMH, and Li-ion batteries.

TECHNICAL SPECIFICATIONS

Specifications
Frequencie VHF: 136-174 MHz.
UHF1: 403-470 MHz.
Power RF VHF: 5/1W.
UHF: 4/1w.
Channel Capacity 32
Dimensions with standard battery 138,5 x 56,7 x 37,8 mm.
With standard battery 455.5g.
Standard Battery Life 11horas.
Power Supply 7,5V
Operating temperature: -20°C +55°C
Sealing IP57

Receiver
Channel Spacing 12,5 o 20/25 kHz.
Sensitivity (a 20dB SINAD) EN 0,50 μV típica.
Intermodulation 65 dB
Adjacent Channel Selectivity 60 dB a 12,5 kHz
70 dB a 20/25 kHz.
Spurious Response Rejectio 70 dB.
Conducted Spurious Emissions -57 dBm < 1 GHz.
-47 dBm < 1GHz.
Audio Output 500 mW.
Audio Distortion 3%
Transmitter
Frequency Stability +/-2,5 ppm.
Power RF 1W .
Modulation Limiting +/-2,5 a 12,5 kHz, +/-4,0 a 20 kHz, +/-5,0 a 25 kHz
Adjacent Channel Power -60 dB a 12,5 kHz.
-70 dB a 20 kHz.
