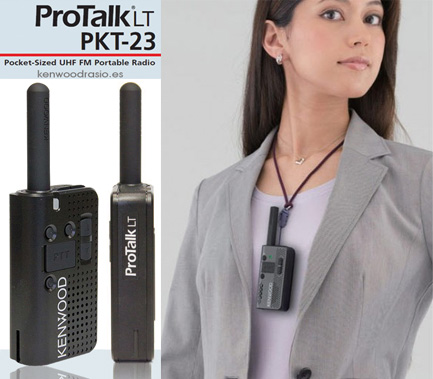

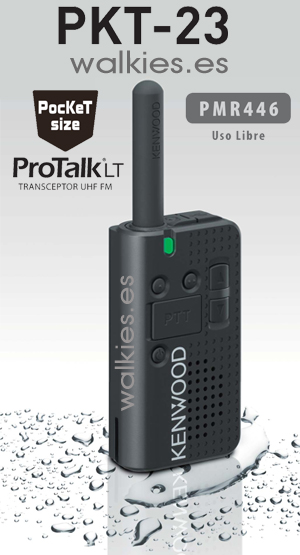

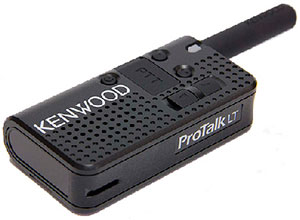

Light Weight and Simple Operation

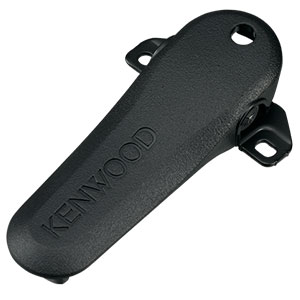

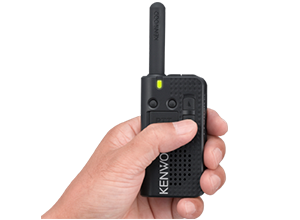

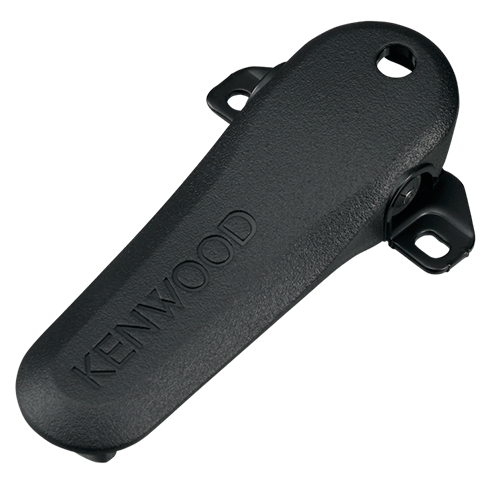

Fitting in the palm of your hand, the PKT-23 is easy to take anywhere your staff needs to go. At only 110 g, it can fit comfortably in a pocket or attached with the included belt clip. The front panel button layout makes the PKT-23 easy to operate.
15 Hours of Operation

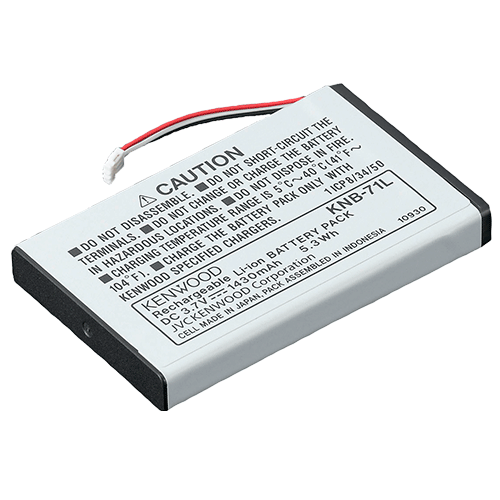

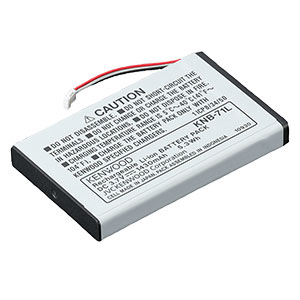

The PKT-23 offers 500 mWatts of power, for direct radio-to-radi communication on the same frequency. The built-in 1,430 mAh lithium-ion battery provides up to 15 hours of use.
8 Channels with Voice Guide
The PKT-23 provides up to 8 channels, allowing you to assign channels to specific team members. The Voice Guide alerts you when you change channels.
Calling Alert
You are alerted to an incoming call by the flashing LED light and a beep.
Multi-coloured LED
Blinking LED lights in 3 colours indicate the PKT-23's transmission status and low battery status.
Built-in VOX

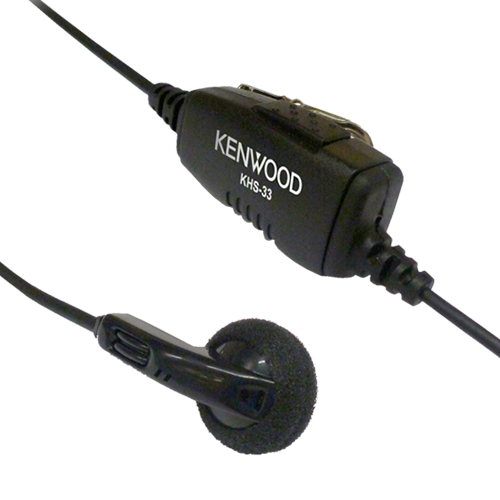

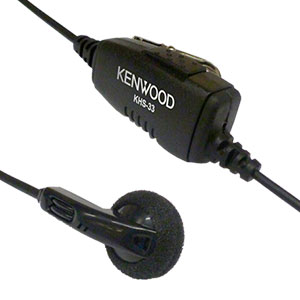

Built-in VOX allows hand free operation which automatically starts transmission in response to your voice when using an external microphone.

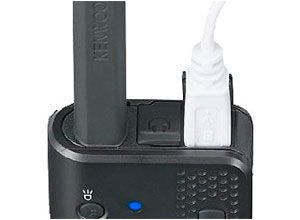

Equipped with Micro USB terminal
The standard micro USB port means a smart phone charger can also be used to charge the PKT-23.
| General Specifications | |
|---|---|
| Number of Channels | 8 |
| Frequency Range | 446.0 a 446.1 MHz. |
| Channel Spacing (Narrow) | 12.5 kHz. |
| Battery Life | Approx. 15 hrs |
| Battery Voltage | 3.8 V DC ± 10 % |
| Frequency Stability | +/-2.5 ppm. |
| Temperatura de funcionamiento: | -10 °C a +60 °C |
| Dimensions (Excluding antenna ) | W46.0 x H85.0 x D21.0 mm |
| Weight with battery | 110g. |
| Receiver Specifications | |
|---|---|
| Sensitivity (Narrow) EN 20dB SINAD | -7.0 dBμV |
| Selectivity (Narrow) | 60 dB. |
| Intermodulation Distortion | 60 dB. |
| Audio Distortion | Less than 5 % |
| Audio Output | 300 mW/4 Ω. |
| Transmitter Specifications | |
| RF Power Output | ERP 500 mW. |
| Spurious Response | -36 dBm ≤ 1 GHz, -30 dBm > 1 GHz. |
| FM Hum & Noise | 50 dB. |
| Modulation Distortion | Less than 5 % |
| Type of Emission | 8K50F3E |
