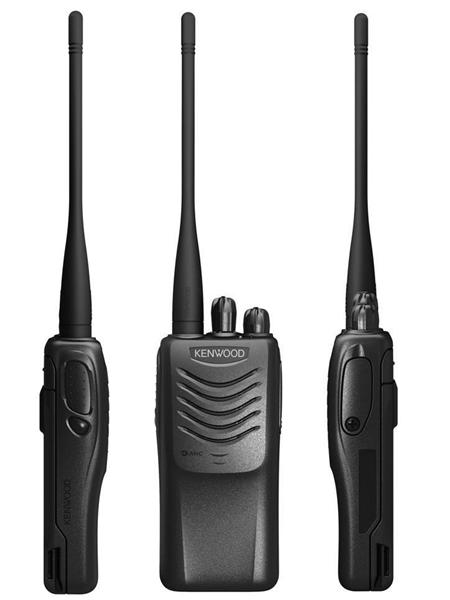

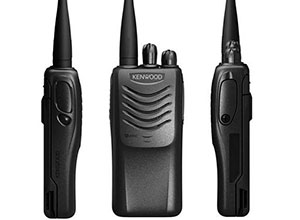

Slim, thin and light — Kenwood's TK-2000/3000 is supremely easy to handle and to operate. Yet this handy compact radio is extremely reliable, meeting the famously tough MIL-STD 810 CIDIEIF and G specifications. With its well-balanced performance, it makes perfect business sense — especially for inventory control and service industry operations.
Thinner and lighter

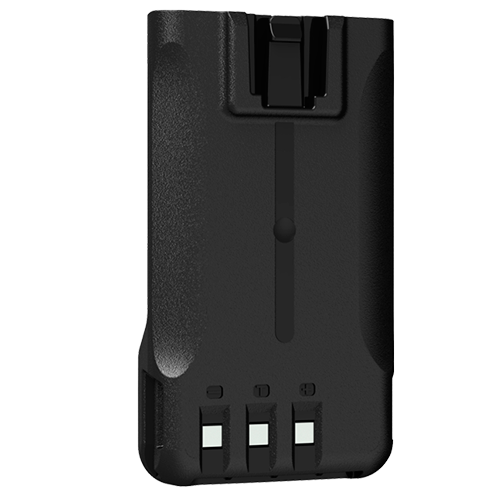

the TK-2000/ 3000 is ideal for hooking on a belt or even slipping into a coat pocket. The slim design fits neatly in your hand and it weighs only 203g with the KNB-63L battery.
16 Channels with Scan Function
This compact, user-friendly portable offers a total of 16 channels, and each can be assigned a QT and DQT tone key to eliminate unwanted signals. You can also assign the 16th channel, if free, to the scan function. This added convenience means that the PF key is freed up for some other function.
Programmable Function Key with Hold
The side PF key can be programmed for enhanced operating ease, while the adjustable HoId feature doubles the number of functions at your fingertips.

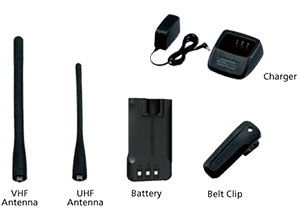

All-in-one Package

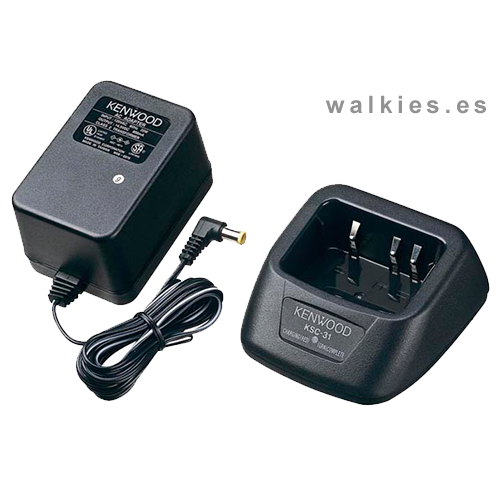

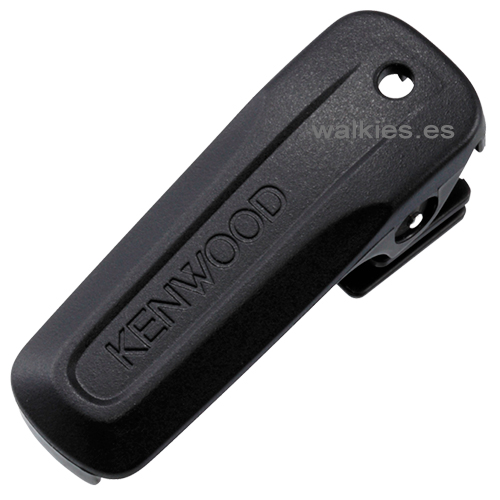

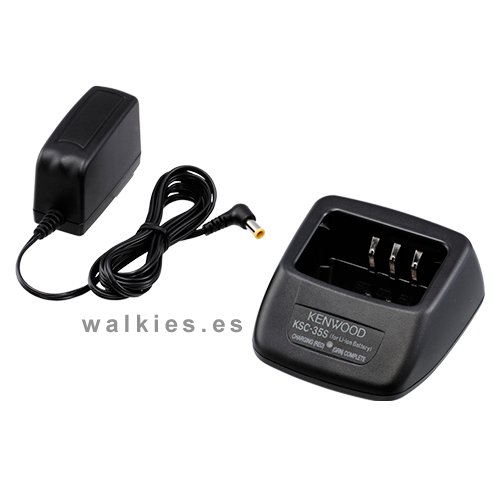

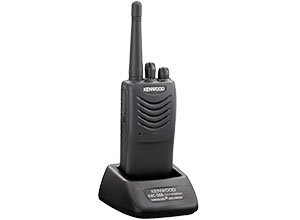

The TK-2000/3000 is ready for use immediately after purchase. It comes with all necessary accessories, including a charger, battery pack and antenna. A handy belt clip is also provided. There is no need to buy extra accessories for normal operation.
Robust & Reliable
The TK-200013000 is built to survive hard knocks, drops and all-weather environments. It meets or exceeds the stringent P54 dust and water intrusion standards as well as the MIL-STD 810 C, D, E, F & G environmental standards.
| Specifications | |
|---|---|
| Frequency Range | TK-2000 (VHF) 136-174 MHz. TK-3000 (UHF) 440 - 470 MHz. |
| Number of Channels | 16 |
| Channel Frequency Spread | 30 MHz |
| Channel Spacing - Analogue - Wide/Mid/Narrow | 25 kHz/20 kHz/12.5 kHz |
| Antenna Impedance - 50 Ohm | Yes |
| Battery Life | With KNB-63L: 9 hours - 5-5-90 duty cycle, with battery saver off |
| Battery Voltage | 7.5 V DC ± 20% |
| Frequency Stability | ± 2.5 ppm (-20 °C to + 60 °C) |
| Operating Temperature Range | -20 °C to + 60 °C |
| PLL Channel Steps | 5.0 kHz/6.25 kHz |
| Dimensions | Radio with KNB-63L: W x H x D - 54 x 113 x 24.9 mm Projections not included |
| Weight (net) | Radio only: 130 g With KNB-63L: 203 g |
| Receiver | |
|---|---|
| Adjacent Channel Selectivity | 70dB at 25 kHz 70dB at 20 kHz 60dB at 12.5 kHz |
| Audio Output | 500 mW |
| Intermodulation | 65dB |
| Sensitivity - EIA 12 dB SINAD | 0.28 µV at 25 kHz 0.28 µV at 20 kHz 0.35 µV at 12.5 kHz |
| Sensitivity - EN 20 dB SINAD | 0.35 µV at 25 kHz 0.35 µV at 20 kHz 0.45 µV at 12.5 kHz |
| Spurious Reponse Rejection (Analogue) | 70 dB |
| Transmitter | |
| RF Power Output (High/Low) | 4 W / 1 W |
| FM Noise (EIA) | 45 dB at 25 kHz 45 dB at 20 kHz 40 dB at 12.5 kHz |
| Microphone Impedance | 1800 Ohm |
| Modulation Distortion | Less than 5% |
| Spurious Emission (EN) | -36 dBm ≤ 1 GHz -30 dBm > 1 GHz |
