Portable radio - License Free PMR446



  • Free PMR446 frequencies
  • 8 Channels
  • On/off/volume control knob
  • 16-position channel/code selector knob
  • Autoscan
  • Battery Save
  • USB CPS Interface
  • Radio Mic Gain
  • Accessory Mic Gain
  • Scan and Scan List
  • Voice scrambling for extra privacy
  • Time-Out Timer
  • Compatible with XTNi Audio Accessories

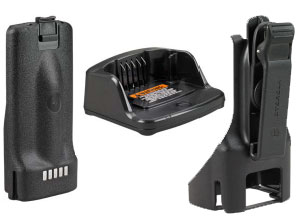

Package includes:
  • Radio.
  • Antenna.
  • Single-Unit Charger.
  • Li-Ion Battery.

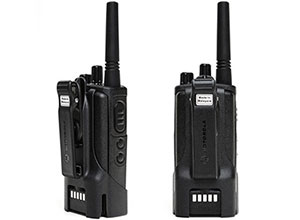

Detail motorola-xt420
Detail  motorola XT420
Detail motorola-xt420

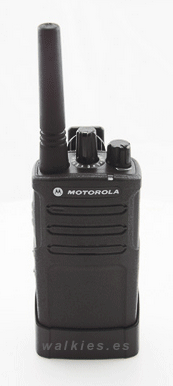

MOTOROLA XT420 License Free Walkie Talkie

Empower your team with a faster way to communicate. The XT420 on-site two-way business radio helps you communicate instantly, without missing a beat. With crisp, clear audio throughout the workplace and exceptional durability, the XT420 delivers great performance even with hard use in high noise, harsh conditions.

License-free PMR446 frequencies
Operates without subscription or call charges on PMR446 unlicensed frequencies, offering 8 channels and user selectable PL codes to help ensure a clear signal.

Enhanced audio quality
Powerful 1500 mW speaker ensures clear communication without distracting feedback in noisy conditions.

Programmable buttons
Two programmable buttons allow quick and easy access to commonly used functions.

Channel Announcement with Voice Alias
Leave your radio on your belt and know exactly what channel you are communicating on. Customise your list of channels by selecting from 16 pre-recorded work functions, such as security, customer service, cashier, etc.*

Advanced Voice Activation (VOX)
Enables hands-free operation with or without the use of optional accessories.

Customer Programming Software (CPS)
HTML-based CPS is easy to use and works with any computer browser. Profiles are interchangeable with the XTNi Series making it easy to add XT400 Series radios to your existing radio fleet (CPS is available as free download. Separate programming cable required.)

Simplified Cloning

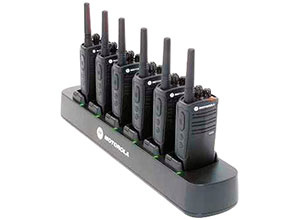

Quickly copy settings from radio to radio (between XT400 Series radios or between XT400 and XTNi radios). Cloning is done with radio-to-radio cloning cable or through the Multi-Unit Charger.

Tri-coloured LED interface
Allows users to identify radio features and status.



Portable Radio XT420

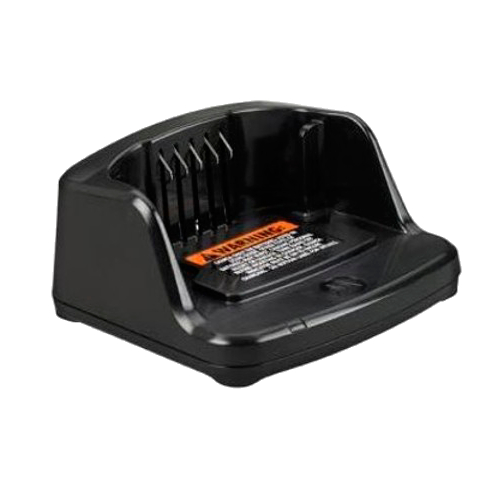

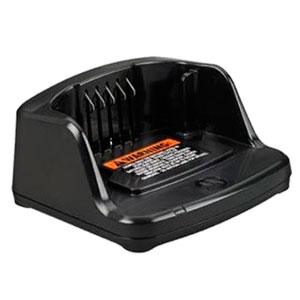

MOTOROLA PMLN6393 Charger single unit for XT420/460


Charger single unit for XT420/460

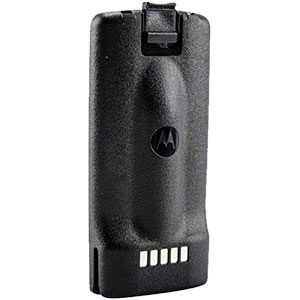

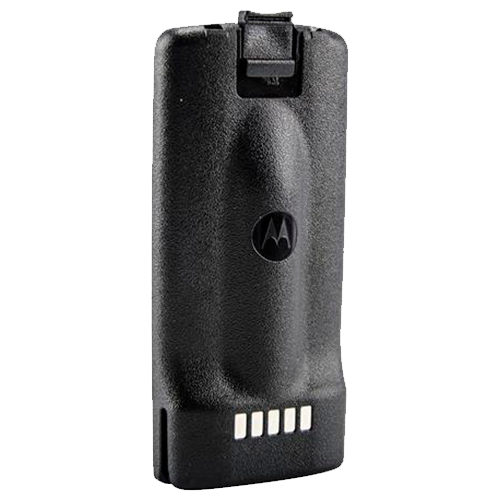

PMNN4434 Rechargeable High Capacity Lithium Ion Battery has a 2100 mAh capacity.


Rechargeable High Capacity Lithium Ion Battery has a 2100 mAh capacity.

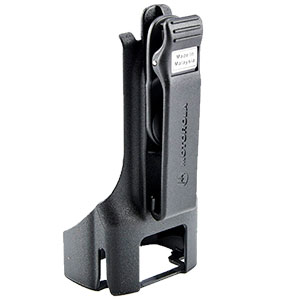

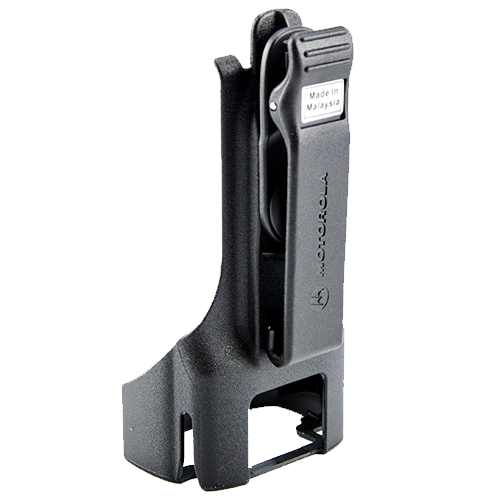

HKLN4510 Carry holster with swivel clip


Carry holster with swivel clip

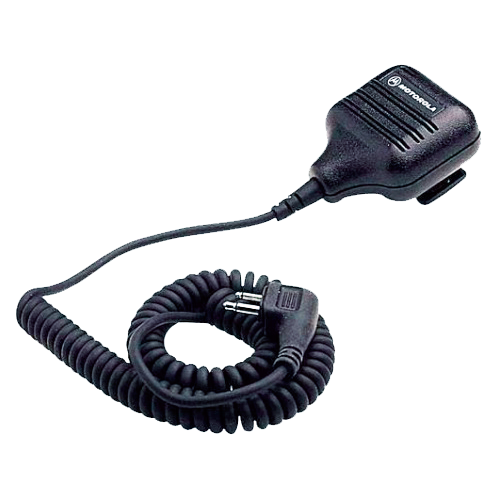

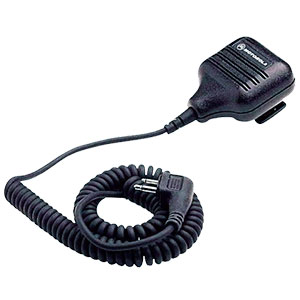

00115 Remote Speaker Mic


Remote Speaker Mic.

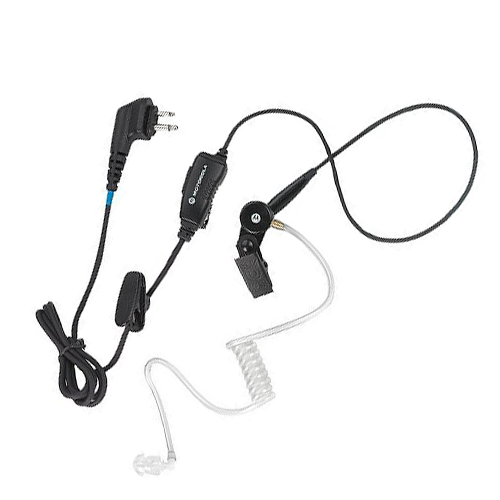

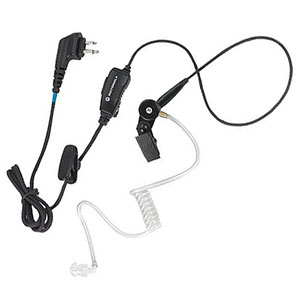

HKLN4477 Single Wire Surveillance Earpiece For Two-Way Radios


Single Wire Surveillance Earpiece For Two-Way Radios.

RLN6423 Swivel Earpiece with PTT


Swivel Earpiece with PTT.

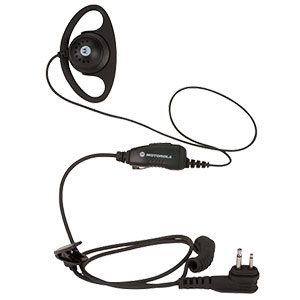

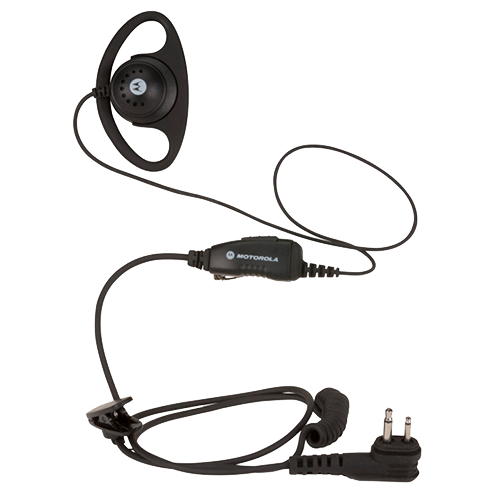

56517  Earpiece with Inline Push-to-Talk Microphone.


Earpiece with Inline Push-to-Talk Microphone.

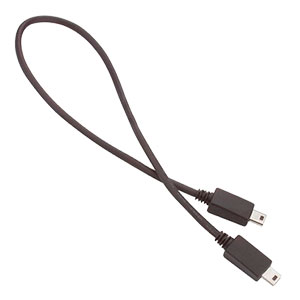

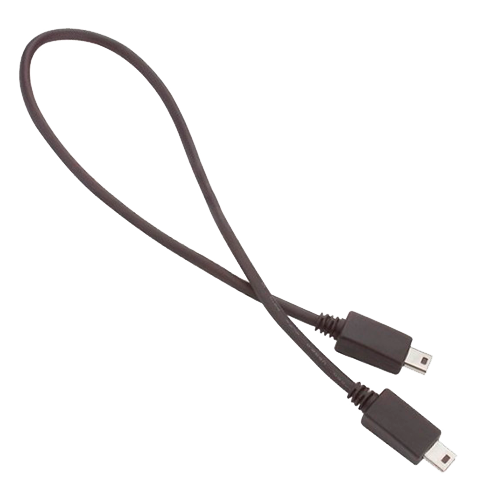

RLN6303A Radio-to-Radio Cloning Cable.


Radio-to-Radio Cloning Cable.

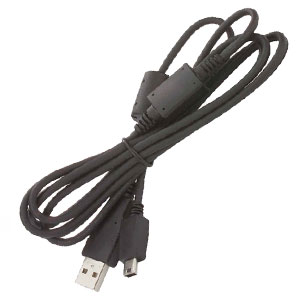

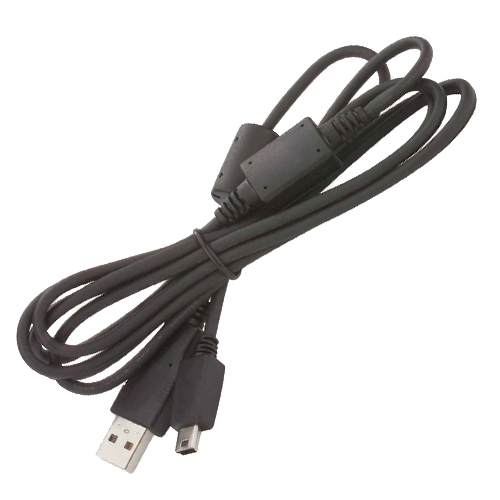

Programing Cable (CPS).


General Specifications
Frequency Range PMR446 (446.00 - 446.1 MHz)
RF Power Output: 0.5 W (standard).
Audio Output: 1500 mW.
Number of Channels: 16
Channel Bandwidth 12.5 kHz.
Private Codes 219 codes
(CTCSS 38, DCS 181)
Dimensions with:
Standard Li-Ion Battery
116 x 58 x 40 mm
Weight with:
Standard Li-Ion Battery
Average Battery Life @ 5/5/902
with Standard 2150 mAH Li-Ion Battery
Up to 20 hours with battery save on
Battery Voltage 3.7V Li-Ion
Operating Temperature -30oC3 to +60oC
Sealing IP55
Receiver Specifications
Sensitivity (12 dB SINAD) -122 dBm (0.18 μV)
Adjacent Channel Selectivity 70 dB @ 12.5 kHz.
Intermodulation Rejection 70 dB.
Spurious Response Rejection (blocking 1 MHz) 90 dB
Audio Distortion < 5%
Transmitter Specifications
Frequency Stability < 1.5 ppm.
Spurs and Harmonics -36 dbm for f < 1GHz, -30 dbm for f> 1GHz
FM Hum and Noise < -45 dB.
Modulation Limiting ±2.5 kHz @ 12.5 kHz
Adjacent Channel Power 70 dBc
